Lancia Fulvia Update – Interior (Still) Coming Out

A little diversion first, shall we?

Last weekend I had the chance to drive a blue Series 2 Lancia Fulvia here in Hobart. The car is (tentatively) up for sale and the owner got in touch to see if I’d be interested in coming to have a look.

He didn’t have to ask twice!

lancia 004

11.03.12-Lancia  (3)

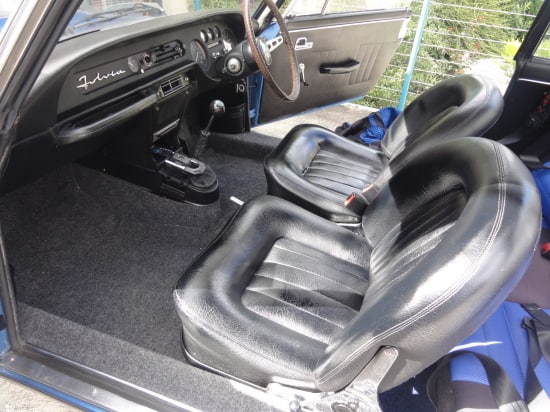

It was wonderful to finally get some seat time in a Fulvia and make contact with an owner who’s been through the ownership experience, including a partial restoration.

I won’t be making an offer on the car because I realised as we drove the blue S2 that I’m far too engaged with my little red Series 1 and I don’t think anything’s going to tear me away from that at this point.

If any Aussies are interested in a blue S2, though, let me know via email and I can put you in touch with the seller. He’s not actively looking to sell at this point, but maybe you and he can work something out. Fulvias don’t come up for sale in Australia very often.

——

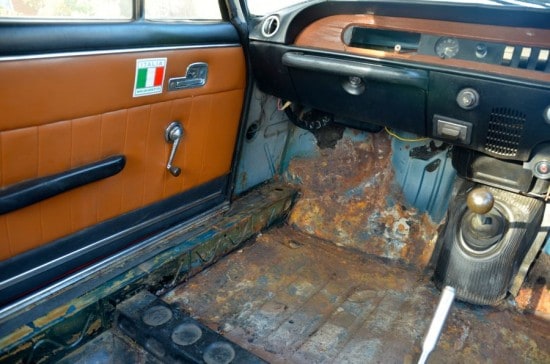

Last time I updated you on my Lancia Fulvia, I’d just taken the seats and floor coverings out and finally got a look at the floor, which is pretty well rusted.

DSC_6326

Since then, I’ve done a few sessions on the dashboard, which is packed with switches, gauges, nuts, bolts and screws. I got some Fulvia repair manuals online but the information in them about dismantling the interior is sadly lacking. It’s been a case of taking what little info there is, asking a few Fulvia friends for help and when all else fails – just going for it!

The first task was to remove the wooden fascia on the dashboard. There are two control knobs just above the steering wheel. The one on the left resets the tripmeter. The one on the right is a dimmer switch for the dashboard lighting. But together, they also secure the wooden dashboard fascia on the driver’s side of the car.

Undo the threaded sleeves holding these on and that’s two of the three nuts holding the wooden fascia done with. The third and final one is inside and just above the glove compartment.

And here’s the dashboard with the wooden fascia removed…..

Removing the gauges was fun! They were all quite easy to remove with just a screwdriver and the various cover plates were just clipped into place. The toughest part was labelling all the wires that connect into the back of the central cluster. The wires are all covered in masking tape labels now, with matching labels on the back of the gauge itself.

The next task was to take off the top dashboard pad. This is fixed in four places. The first two bits to remove are actually the air vents on either side of the dash pad. I kept feeling around the back of the vent for some screws to release the vents. I tried just pulling them out (though not with much force). I then had some helpful advice from a Dutch friend telling me about the spring release system that holds them in place. You can see the curved bits of metal inside the vent. They sit in a groove in the metal. Simply pop them out with a little bit of leverage from a small screwdriver and the vents come out easily.

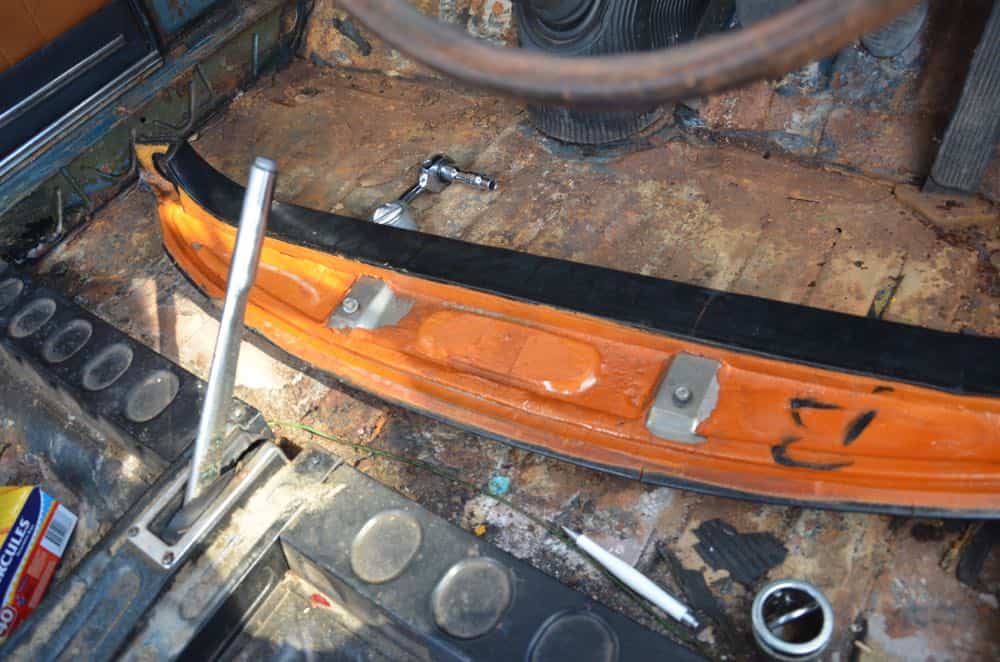

The other fixing are underneath. Two 10mm nuts that were easily accessible from underneath the pad, inside the dashboard. Here’s the dash removed and turned upside down, showing the location of the fixings.

DSC_6366

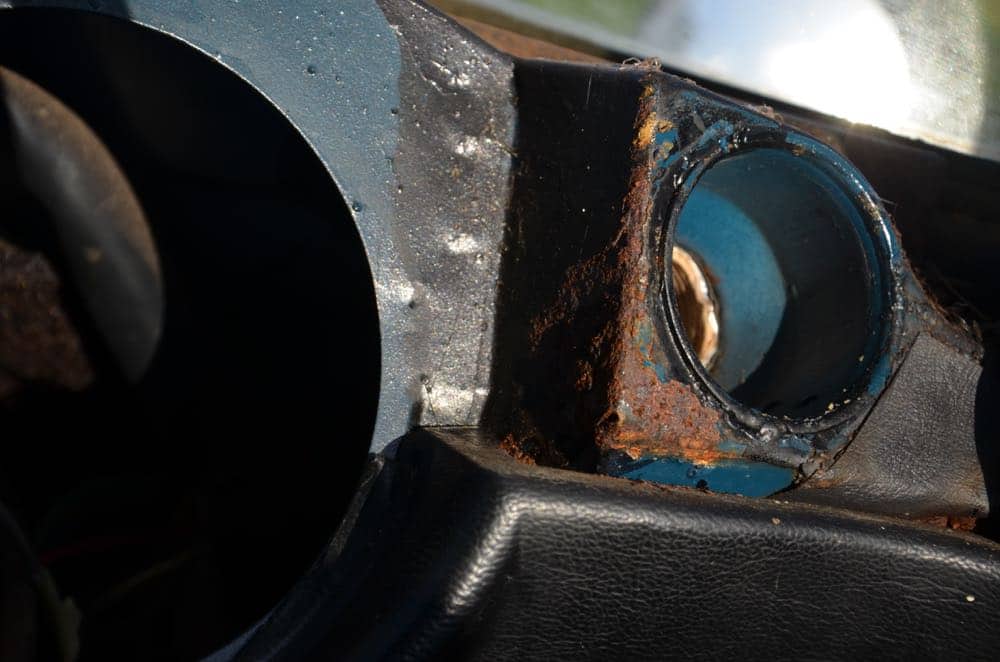

Removing the dash pad revealed some more rust in the top RHS corner of the dashboard. There must have been a windscreen leak in this area. I’ll show you some more rust from that in a moment.

DSC_6365

The lower dashboard pad on the driver’s side was secured by two tiny little 8mm nuts that were a complete pain in the backside to undo (until I stopped trying to use my small shifter and trudged down to the garage for an 8mm spanner!)

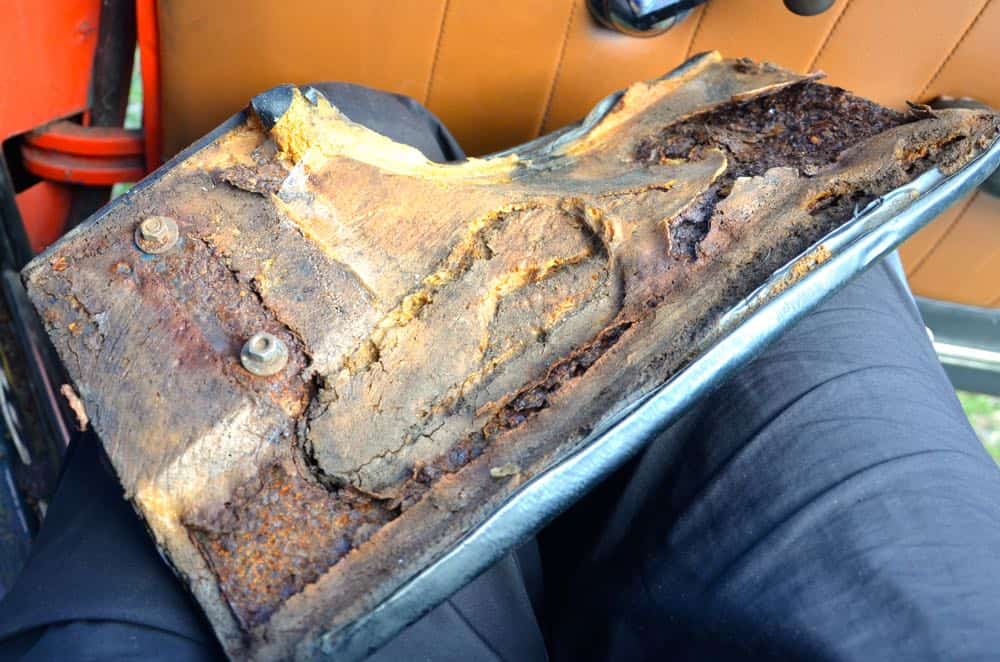

You can see from the photo above, where the lower dash pad was removed, it revealed a little more rust in the metal. The lower dash pad itself is your usual foam with a vinyl covering, but it seems to be formed around a metal mould. The metal in the dash pad itself has rusted quite badly – that likely windscreen leak, again – as you can see from the photo below.

DSC_6372

The last task for this evening was to remove the ‘panic handle’ from the passenger side of the dashboard. This was held in by four fixings: two inside the glovebox and two inside the handle itself. Important to note – the of the glovebox bolts also acting as a fastener for this blue wire to the body (presumably an earth, maybe for the clock?)

——

I’ve still got the central cluster of switches and instruments to remove, which I’m told will get very tricky when it comes to the ventilation system. Then there’s the lower dash pad on the passenger side, including the glove box.

Onwards and upwards!!
